Old 2003-11-18, 04:34 PM   #1
AtomicLabMonkey
Nightwalker

AtomicLabMonkey's Avatar

Real Name: Austin
Join Date: Dec 2002
Location: Oshkosh, WI
Posts: 4,063

Car: '13 WRX

YGBSM
Default Finite Element Analysis is cool.

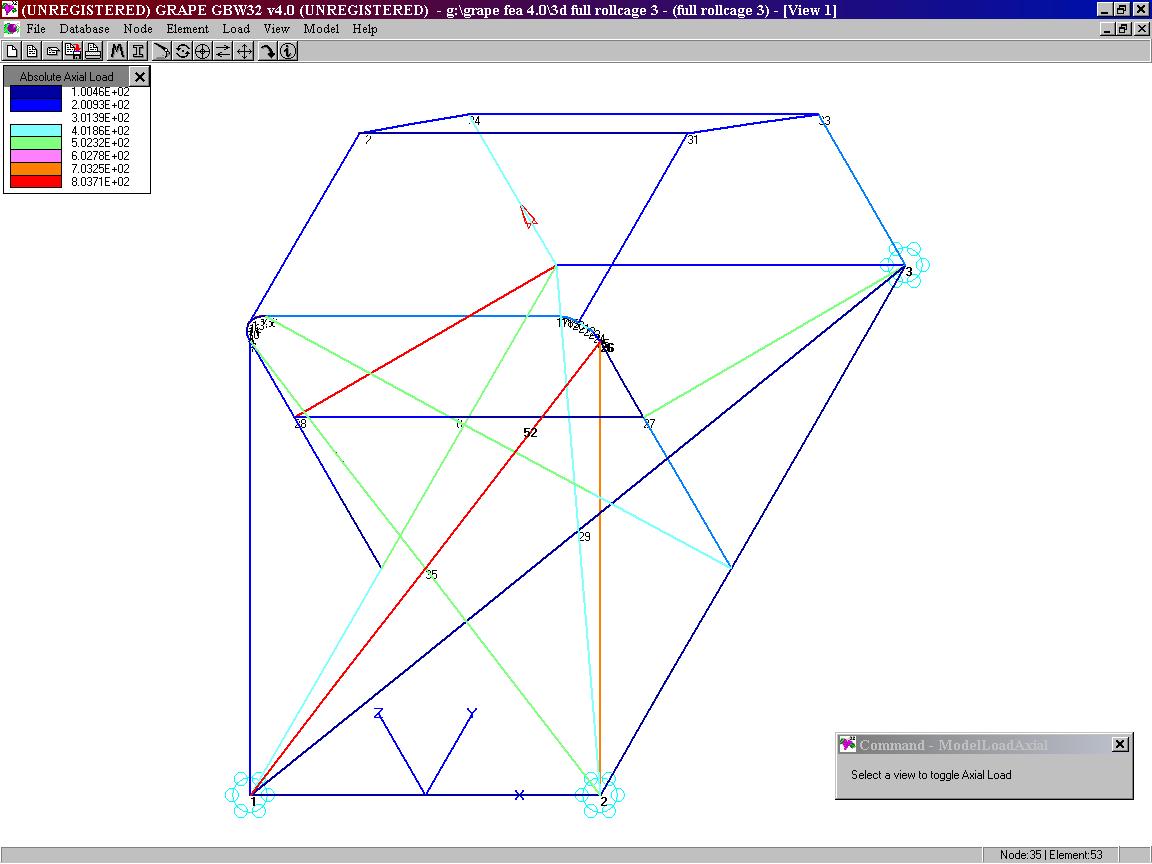

Check it out; I've been playing around with rollcage models in a FEA program, and it's pretty sweet. You can apply loads to the structure and not only see stress levels in all the tubes, but it calculates displacement - so you can see how the cage will flex under your given load as you add & subtract different bars from the structure. It can even animate it for you.
Attached Thumbnails
Click image for larger version

Name:	grape_axial_stress_iso.jpg
Views:	348
Size:	96.7 KB
ID:	324

Click image for larger version

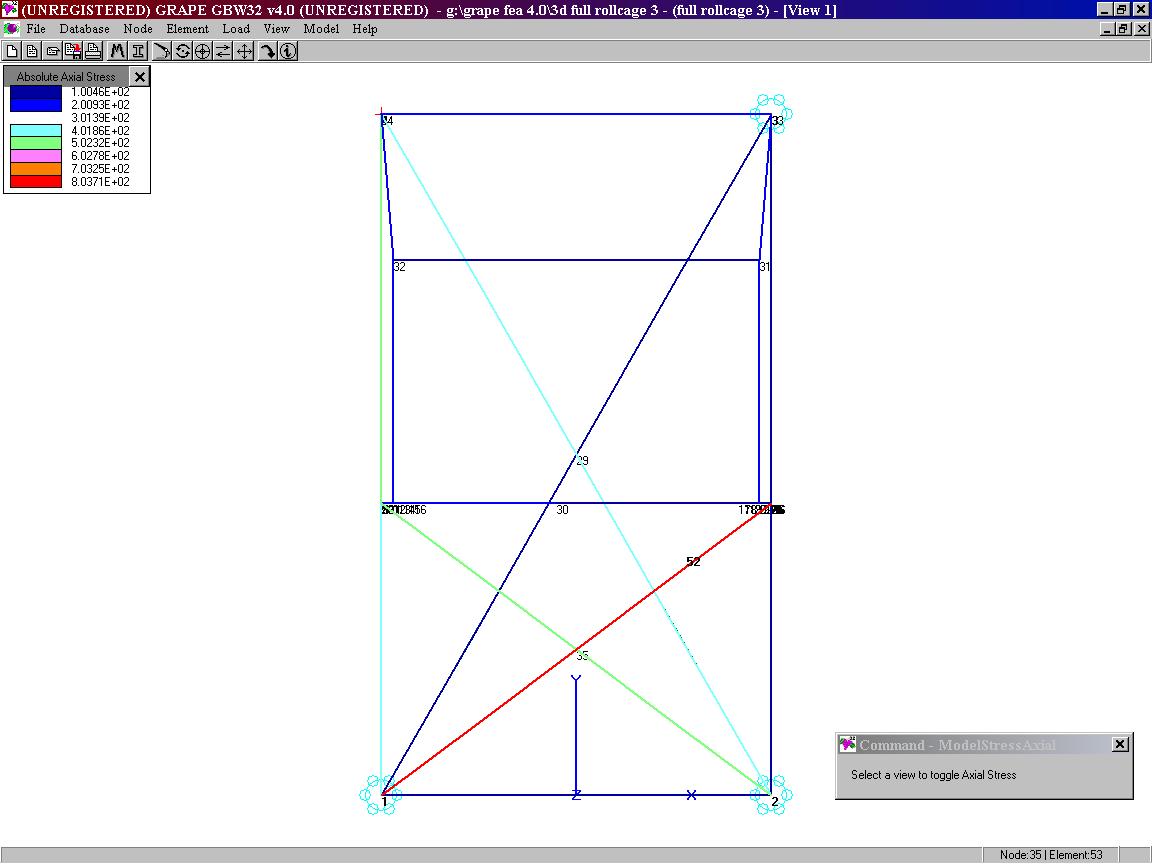

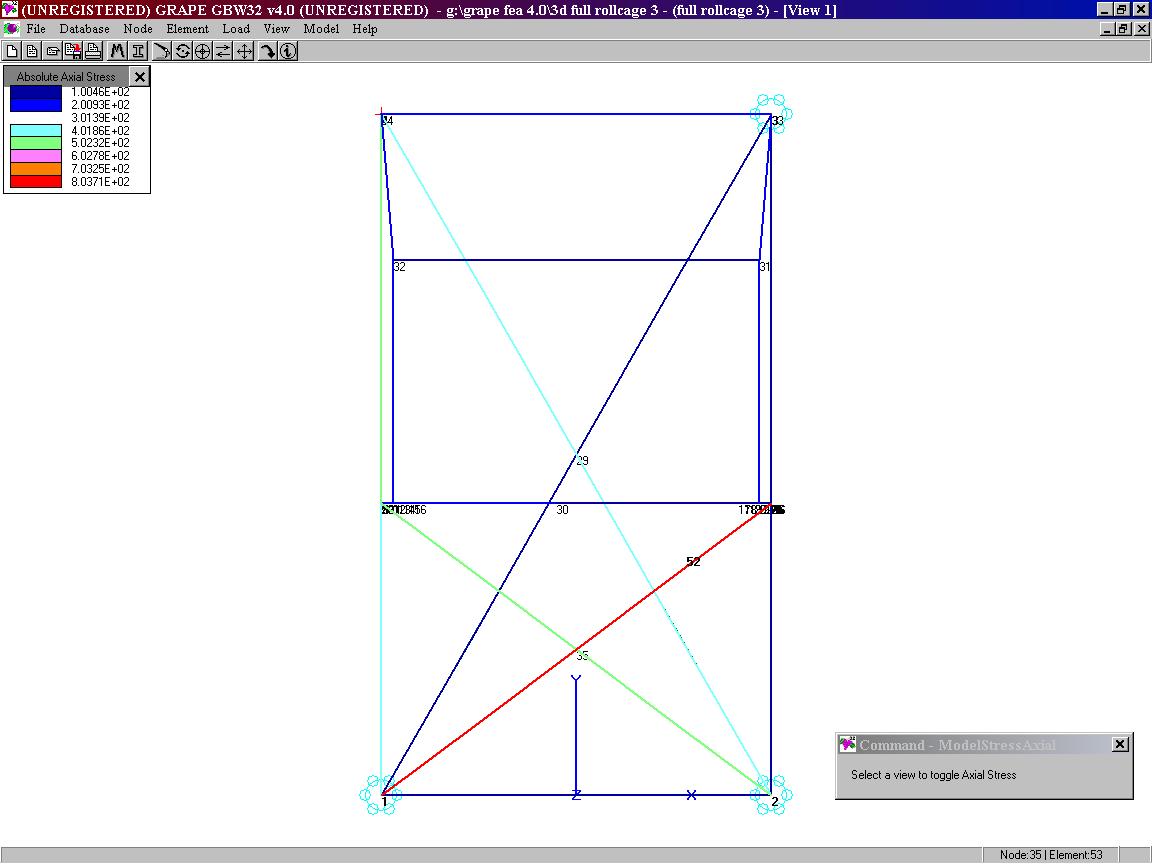

Name:	grape_axial_stress_top.jpg
Views:	342
Size:	76.9 KB
ID:	325

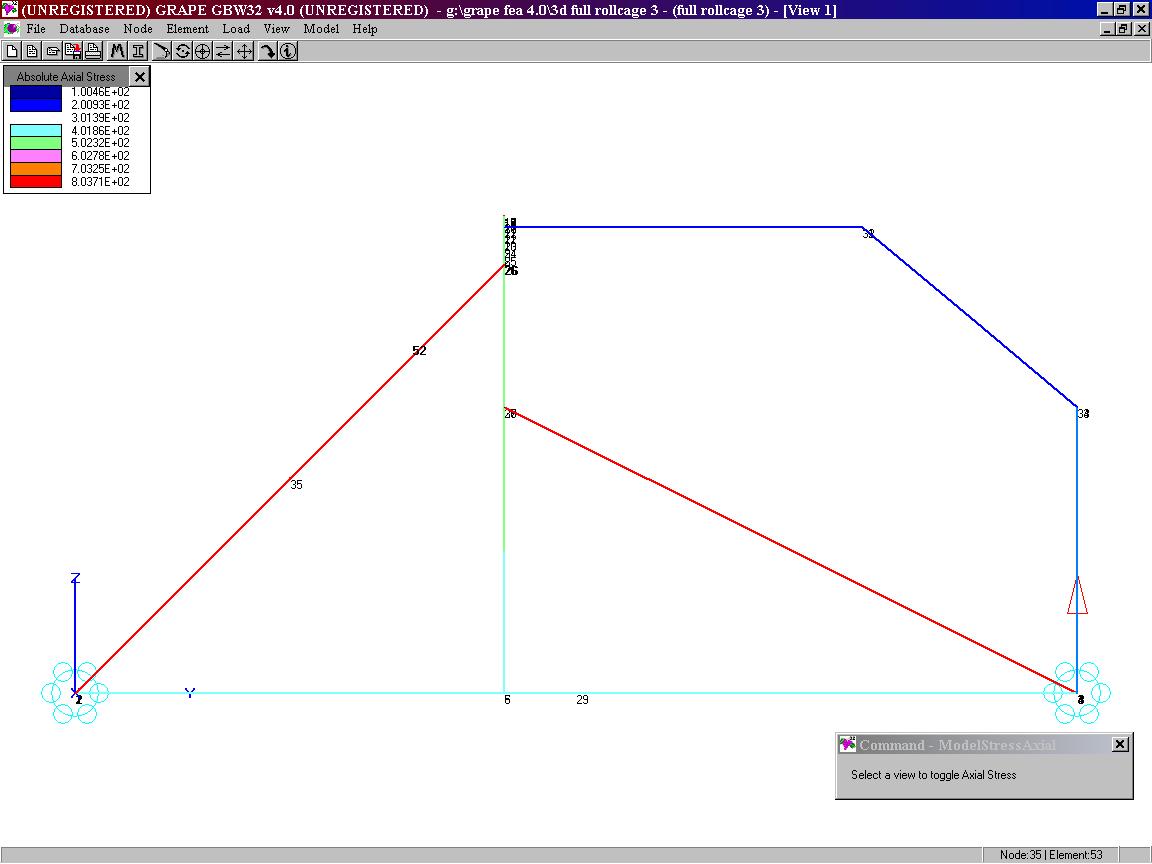

Click image for larger version

Name:	grape_axial_stress_right.jpg
Views:	347
Size:	71.1 KB
ID:	326

__________________
"None of you seem to understand. I'm not locked in here with you.. you're locked in here with me."
AtomicLabMonkey is offline   Reply With Quote
Old 2003-11-18, 04:36 PM   #2
AtomicLabMonkey
Nightwalker

AtomicLabMonkey's Avatar

Real Name: Austin
Join Date: Dec 2002
Location: Oshkosh, WI
Posts: 4,063

Car: '13 WRX

YGBSM
Default

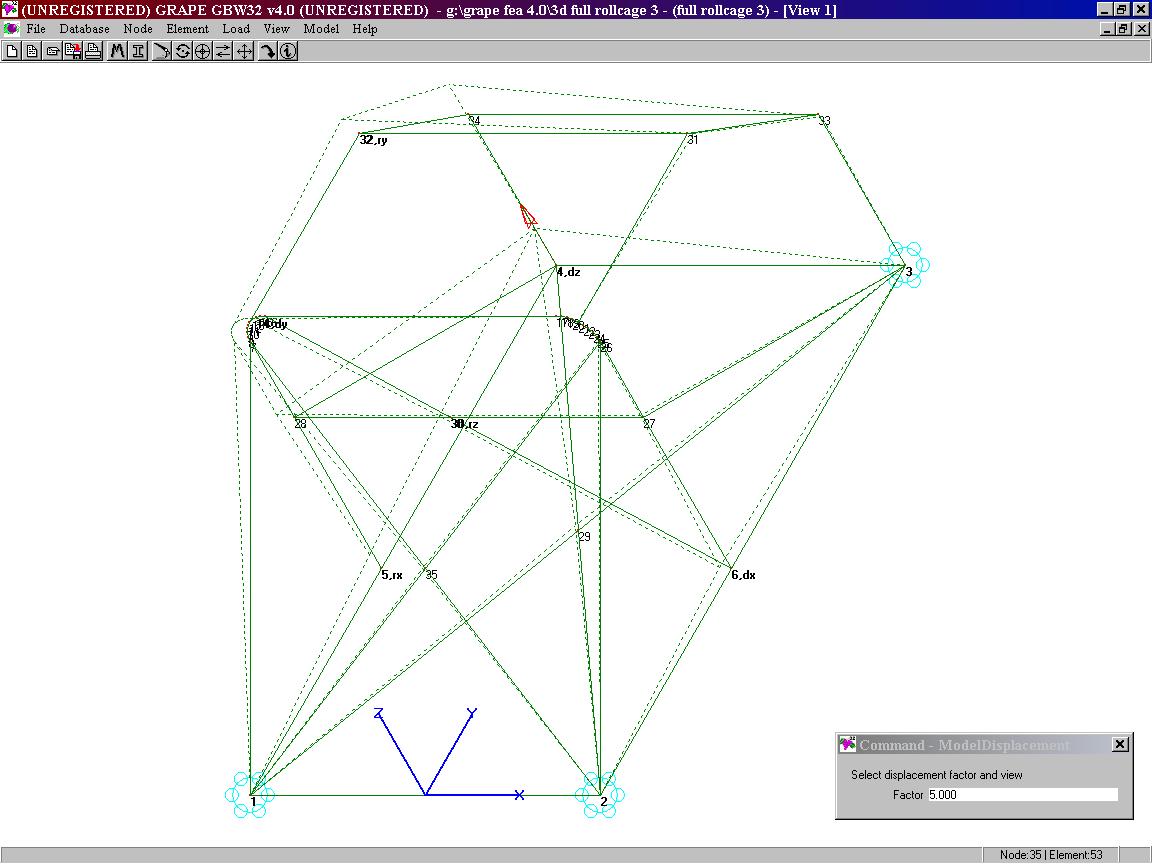

And here's a picture of how it illustrates displacement... you get a numerical output too of course, so you can see exact numbers as well.
Attached Thumbnails
Click image for larger version

Name:	grape_displacement_iso.jpg
Views:	338
Size:	105.4 KB
ID:	327

__________________
"None of you seem to understand. I'm not locked in here with you.. you're locked in here with me."
AtomicLabMonkey is offline   Reply With Quote
Old 2003-11-18, 09:06 PM   #3
tysonK
warehouse SECCS

tysonK's Avatar

Join Date: Mar 2003
Location: SoCal...
Posts: 6,253

Car: 04 Evo 99 Cadillac
Class: street de le mod
Default

ok that's pretty cool

are those models for your stang?!?!
__________________
Anjali? Anjali?


tysonK is offline   Reply With Quote
Old 2003-11-18, 09:46 PM   #4
AtomicLabMonkey
Nightwalker

AtomicLabMonkey's Avatar

Real Name: Austin
Join Date: Dec 2002
Location: Oshkosh, WI
Posts: 4,063

Car: '13 WRX

YGBSM
Default

Quote:
Originally Posted by tysonK
are those models for your stang?!?!
I wish. Maybe someday it will have a full cage like that. It might have a more bare-bones 6-pt. bar in its future though...
__________________
"None of you seem to understand. I'm not locked in here with you.. you're locked in here with me."
AtomicLabMonkey is offline   Reply With Quote
Old 2004-02-25, 07:52 AM   #5
AtomicLabMonkey
Nightwalker

AtomicLabMonkey's Avatar

Real Name: Austin
Join Date: Dec 2002
Location: Oshkosh, WI
Posts: 4,063

Car: '13 WRX

YGBSM

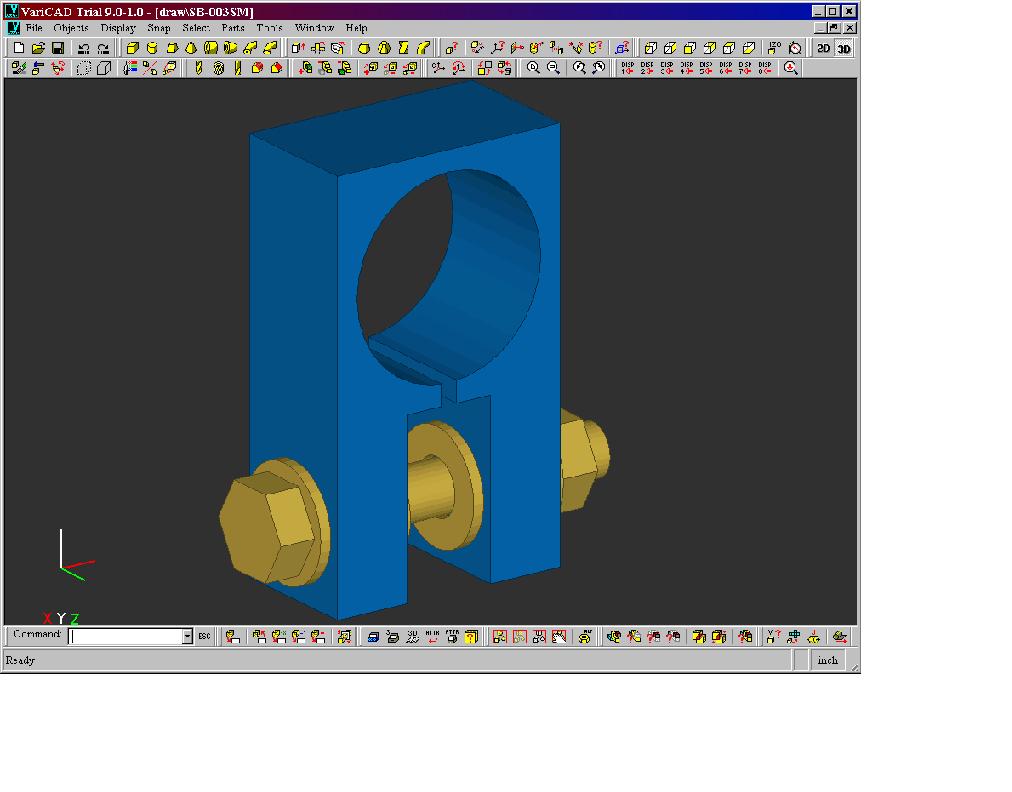

Default Part 2: Fun With 3-D Solid Modeling

Sweet...
Attached Thumbnails
Click image for larger version

Name:	adjustable_front_swaybar_clamp_1.jpg
Views:	317
Size:	64.5 KB
ID:	522

Click image for larger version

Name:	6pt_roll_bar_1.jpg
Views:	307
Size:	67.2 KB
ID:	523

__________________
"None of you seem to understand. I'm not locked in here with you.. you're locked in here with me."
AtomicLabMonkey is offline   Reply With Quote
Old 2004-02-25, 08:14 AM   #6
Dean
Seņor Cheap Bastarde

Dean's Avatar

Real Name: Dean
Join Date: May 2003
Location: $99 Tire Store
Posts: 9,294

Car: $.04 STI
Class: Fast,Cheap & Reliable=STI

Deal, did somebody say Deal? Oh, Dean, yeah that's me.
Default

Anybody haev good pictures of Gary's cage? I'm really leaning towards 6 points, but with a front hoop.
__________________
I am a Commodore PET --- Now get off my lawn you kids...
Dean is offline   Reply With Quote
Old 2004-02-25, 09:04 AM   #7
sperry
The Doink

sperry's Avatar

Real Name: Scott
Join Date: Nov 2002
Location: Portland, OR
Posts: 20,335

Car: '09 OBXT, '02 WRX, '96 Miata
Class: PDX/TT-6

The way out is through
Default

Quote:
Originally Posted by Dean
Anybody haev good pictures of Gary's cage? I'm really leaning towards 6 points, but with a front hoop.
I can't find any great pictures but here's what I got at the last Sears Point USTCC race I went to:

[img:e55f9a35d6=600]http://www.seccs.org/gallery/Race%20Events/2003-10-26%20NASA%20USTCC%20Race%20at%20Sears%20Point/USTCC%20WRX%20Before%20the%20race%206.jpg[/img:e55f9a35d6]

And here's one from Reno-Fernley:

[img:e55f9a35d6=600]http://www.seccs.org/gallery/Race%20Events/2003-08-09%20NASA%20USTCC%20Race%20at%20Reno-Fernley%20Raceway/2003-08-09%20Day%201/USTCC%20WRX%20Interior.jpg[/img:e55f9a35d6]
__________________
Is you is, or is you ain't, my con-stit-u-ints?
sperry is offline   Reply With Quote
Old 2004-02-25, 09:41 AM   #8
Dean
Seņor Cheap Bastarde

Dean's Avatar

Real Name: Dean
Join Date: May 2003
Location: $99 Tire Store
Posts: 9,294

Car: $.04 STI
Class: Fast,Cheap & Reliable=STI

Deal, did somebody say Deal? Oh, Dean, yeah that's me.
Default

Wo, that looks completely different than the interior on his web site...

http://www.teamsmr.com/html/car.html

The web page cage does not penetrate the dash like the one in your pictures amungst other things...
__________________
I am a Commodore PET --- Now get off my lawn you kids...
Dean is offline   Reply With Quote
Old 2004-02-25, 10:02 AM   #9
sperry
The Doink

sperry's Avatar

Real Name: Scott
Join Date: Nov 2002
Location: Portland, OR
Posts: 20,335

Car: '09 OBXT, '02 WRX, '96 Miata
Class: PDX/TT-6

The way out is through
Default

Quote:
Originally Posted by Dean
Wo, that looks completely different than the interior on his web site...

http://www.teamsmr.com/html/car.html

The web page cage does not penetrate the dash like the one in your pictures amungst other things...
Those look like early pics of the car... it looks much better now!
__________________
Is you is, or is you ain't, my con-stit-u-ints?
sperry is offline   Reply With Quote
Old 2004-03-02, 11:42 AM   #10
AtomicLabMonkey
Nightwalker

AtomicLabMonkey's Avatar

Real Name: Austin
Join Date: Dec 2002
Location: Oshkosh, WI
Posts: 4,063

Car: '13 WRX

YGBSM
Default

Solid model of a hypothetical adjustable swaybar... I'm developing some mad sk11lz here...
Attached Thumbnails
Click image for larger version

Name:	adjustable_front_swaybar_model_wireframe.jpg
Views:	267
Size:	84.3 KB
ID:	538

Click image for larger version

Name:	adjustable_front_swaybar_model.jpg
Views:	272
Size:	61.0 KB
ID:	539

__________________
"None of you seem to understand. I'm not locked in here with you.. you're locked in here with me."
AtomicLabMonkey is offline   Reply With Quote
Old 2004-03-02, 11:50 AM   #11
Kevin M
EJ22T

Kevin M's Avatar

Join Date: Sep 2003
Location: Reno
Posts: 9,445

Car: '93/'01 GF6, mostly red
Class: 19 FP
Default

That's a really good idea, but it's missing one small detail- how do you ensure that both sides are exactly the same? Graduated markings, or maybe ball-bearing detents?
__________________
FWD is the new AWD
Kevin M is offline   Reply With Quote
Old 2004-03-02, 12:40 PM   #12
AtomicLabMonkey
Nightwalker

AtomicLabMonkey's Avatar

Real Name: Austin
Join Date: Dec 2002
Location: Oshkosh, WI
Posts: 4,063

Car: '13 WRX

YGBSM
Default

Quote:
Originally Posted by BAN SUVS
That's a really good idea, but it's missing one small detail- how do you ensure that both sides are exactly the same? Graduated markings, or maybe ball-bearing detents?
Actually that's not an original idea, it's fairly common on racecars. If I was using one, I'd just measure the clamp position from the end of the bar; like you said, if you wanted you could scribe markings on the bar itself for quick changes.
__________________
"None of you seem to understand. I'm not locked in here with you.. you're locked in here with me."
AtomicLabMonkey is offline   Reply With Quote
Old 2004-03-02, 03:17 PM   #13
AtomicLabMonkey
Nightwalker

AtomicLabMonkey's Avatar

Real Name: Austin
Join Date: Dec 2002
Location: Oshkosh, WI
Posts: 4,063

Car: '13 WRX

YGBSM
Default

Quote:
Originally Posted by Dean
Anybody haev good pictures of Gary's cage? I'm really leaning towards 6 points, but with a front hoop.
That's what I would recommend, if you can afford it. The FEA analysis I've done for different cage types clearly shows trends on how they affect chassis stiffness. In a frontal torsional load case (like I showed above), even going from a regular 6-point bar to a 6-point with full upper structure with A-pillar bars results in less than half as much chassis twist/displacement. Also get a good, experienced cage builder to do it who will tie the cage into the unibody at as many places as possible or allowed.
__________________
"None of you seem to understand. I'm not locked in here with you.. you're locked in here with me."
AtomicLabMonkey is offline   Reply With Quote
